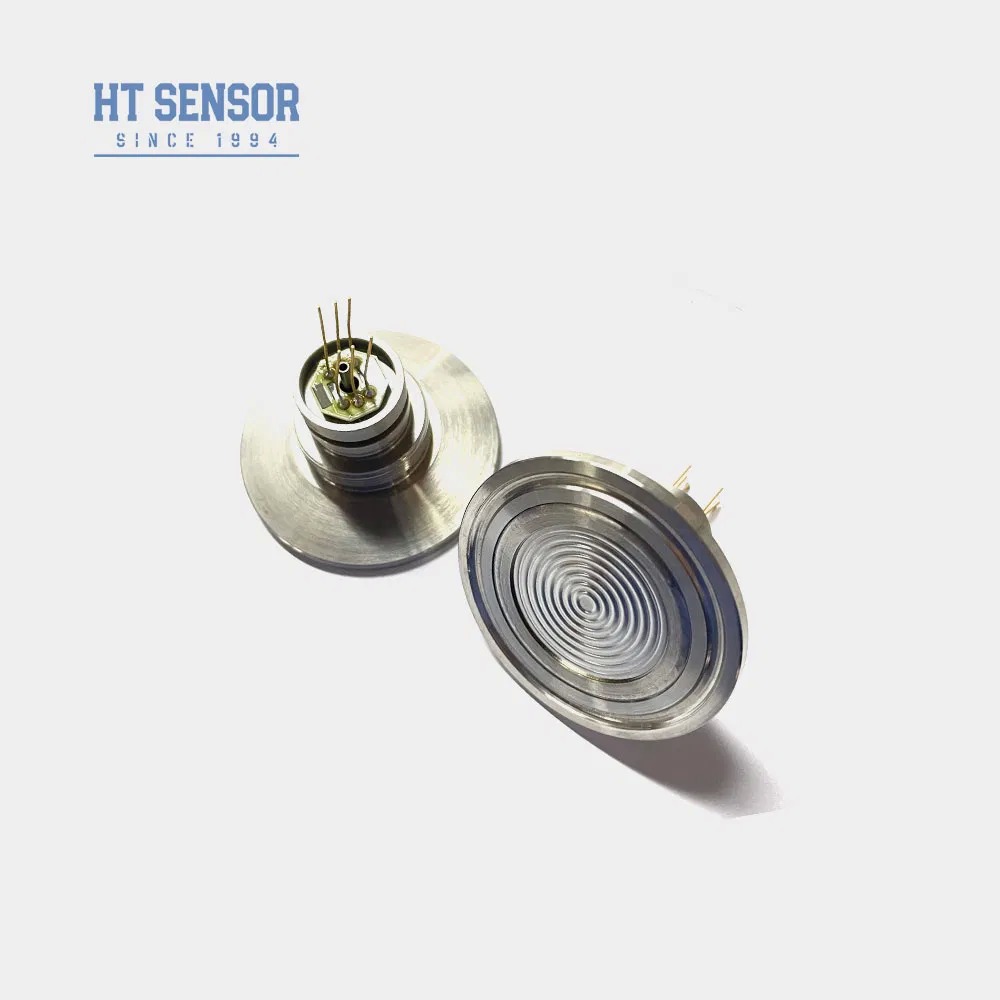

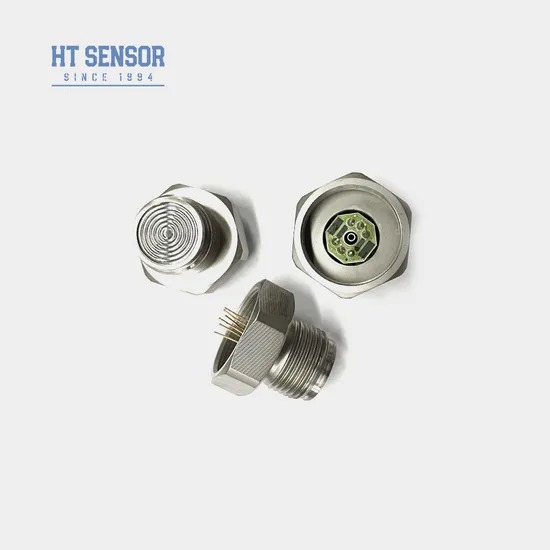

Sanitary Industry Flush Diaphragm Pressure Sensor with Clamp Level Sensor Cell 0Sanitary Industry Flush Diaphragm Pressure Sensor with Clamp
HT-IQ Silicon Piezoresistive Pressure Sensor

Introduction:
HT-IQ is a flush diaphragm pressure sensor with a highly stable diffused silicon chip. The pressure is transmitted to the sensitive chip through a stainless steel diaphragmand sealed silicon oil. The sensitive chip does not directly contact the measured medium. This product features a flat diaphragm structure, making it easy to clean and highly reliable. It is suitable for applications in industries such as food and hygiene.

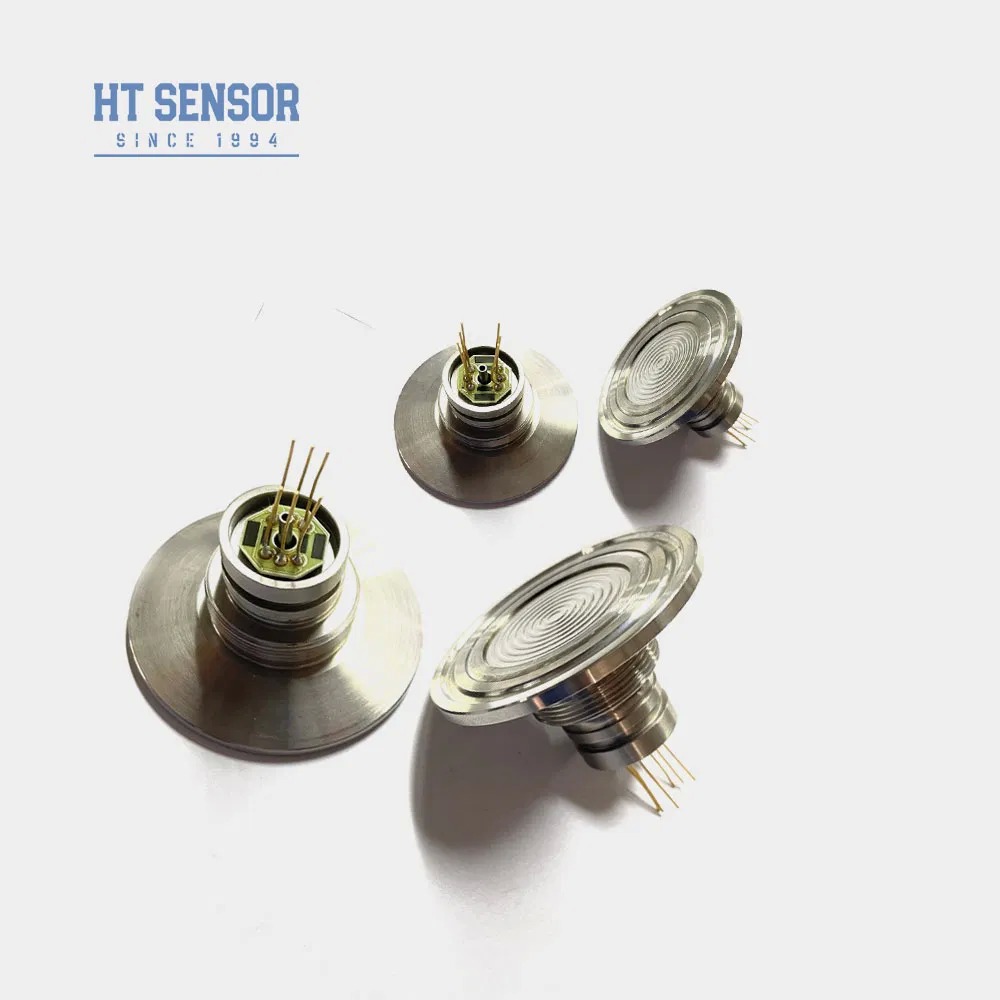

Sanitary Industry Flush Diaphragm Pressure Sensor with Clamp Level Sensor Cell 1

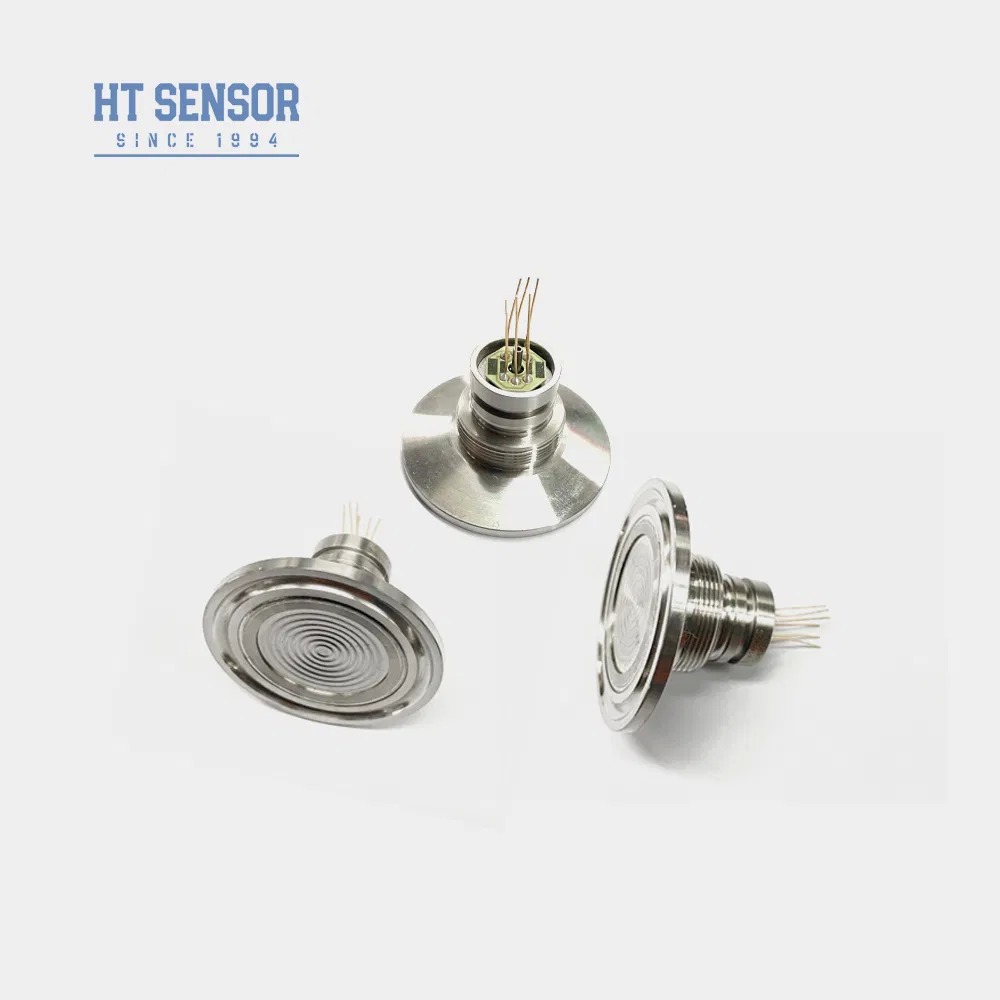

Sanitary Industry Flush Diaphragm Pressure Sensor with Clamp Level Sensor Cell 2

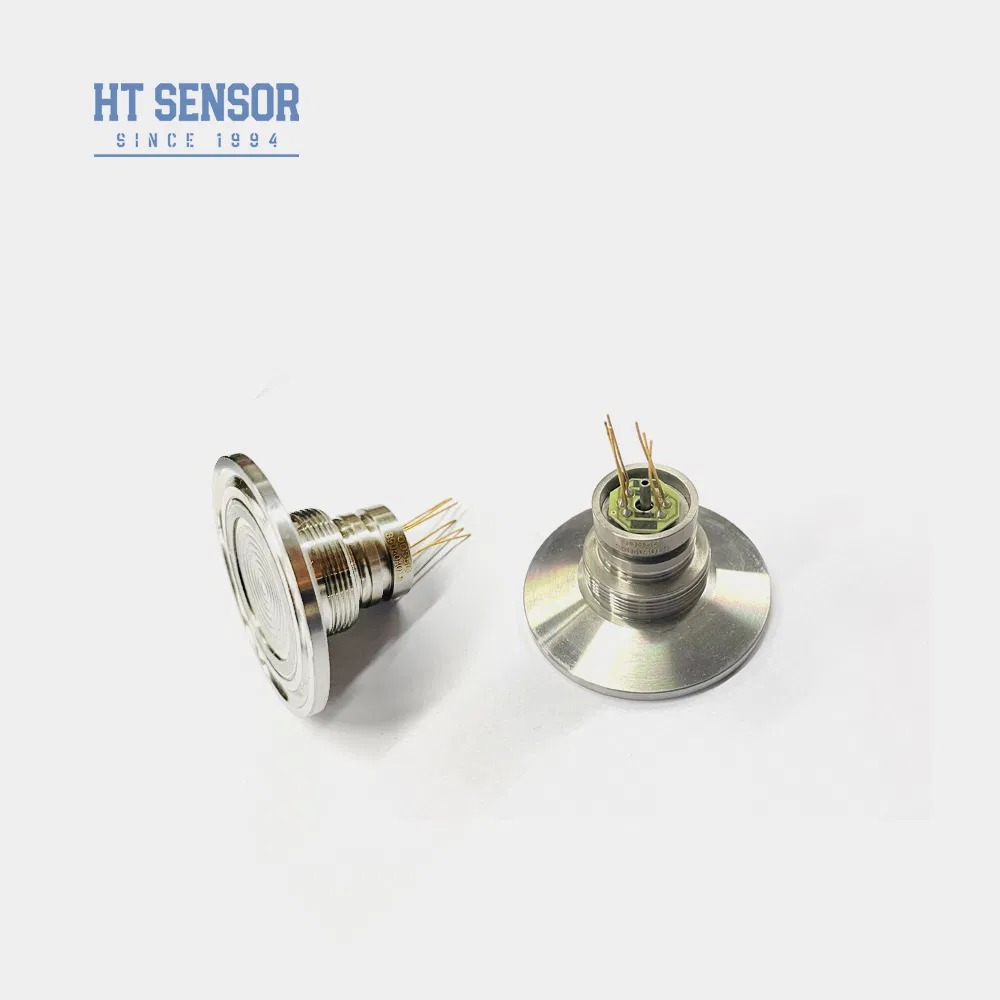

Sanitary Industry Flush Diaphragm Pressure Sensor with Clamp Level Sensor Cell 3
Product  Features:
  1. Utilizing advanced technology and 316L stainless steel housing, along with materials such as titanium and Hastelloy for the diaphragm
  2. Employing thick-film circuits for temperature compensation and zero-point  correction
  3. outstanding reliability, repeatability, and stability
  4. Flush diaphragm structure, which makes it easy to clean
Applications:
  1. Suitable for measuring non-corrosive gas and liquid pressure with 316L stainless steel compatibility
  2. Food and beverage industry
  3. Industrial process control
  4. Pharmaceutical industry
Electrical performance:
  1. Power Supply:        ≤2mA DC (Typical 1.5mA DC)
  2. Input Impedance  :     2.5KΩ~6KΩ
  3. Output Impedance:     2.5KΩ~6KΩ
  4. Electrical Connection: Gold-plated Kovar pins or 100mm high-temperature wires.
Performance Parameters:
Measurement Range Gauge(G) 35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa
Absolute(A) 100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA
Sealed(S) 3500KPaS
  Typ Max Unit
NonLinearity   ±0.15 ±0.3 %F.S
Repeatability  0.05 0.1 %F.S
Hysteresis    0.05 0.1 %F.S
Zero Offset Output   0±1 0±2 mV
Full Scale Output   ≤20KPa 50±10 50±30 mV
≥35kPa 100±10 100±30 mV
Zero Offset Temp. Drift ≤20KPa ±1 ±2 %F.S
≥35kPa ±0.5 ±1 %F.S
Full Scale Temp. Drift ≤20KPa ±1 ±2 %F.S
≥35kPa ±0.5 ±1 %F.S
Compensated Temp. ≤20KPa 0~50 ºC
≥35kPa 0~70 ºC
Operating Temperature   -20~80 ºC
Storage Temperature  -40~125 ºC
Allowable Overload Take the smaller value between 3 times the full scale or 120MPa
Burst Pressure 5X the full scale
Long-term Stability 0.2 %   F.S/Year
Diaphragm Material 316L
Insulation Resistance ≥200MΩ 100VDC
Vibration No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock 100g,11ms
Response Time ≤1ms
O-ring Seal Nitrile rubber or Fluoro rubber
Filling Medium Silicon Oil
Weight ~150g
The parameters are tested under the following conditions:  1.5mA @25°C

Outline Construction
Dimension

Sanitary Industry Flush Diaphragm Pressure Sensor with Clamp Level Sensor Cell 4








Electrical connection and compensation
Sanitary Industry Flush Diaphragm Pressure Sensor with Clamp Level Sensor Cell 5

Selection Examples
Sanitary Industry Flush Diaphragm Pressure Sensor with Clamp Level Sensor Cell 6
Ordering tips
1. Pay attention to the fit between the core size and the transmitter housing during assembly to achieve the
     required airtightness
2. During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid jamming or damaging the compensation plate.
3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when      placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.
5. Keep the pressure port of the gauge pressure core open to the atmosphere and prevent the entry of water, water vapor, or corrosive media into          the core negative pressure chamber.
6. If there are any changes to the pin leads, follow the label on the actual core for reference.
