Détail Infomation

Numéro de modèle.:	NT1département d'État	contact:	contact
Type de signal de sortie:	Type analogique	Processus de production:	Faille de fil normale
Matériel:	Acier inoxydable	Milieu de mesure:	Température
Indice IP:	IP65	Personnalisé:	Personnalisé
Température:	OEM	PT100:	UN
Matériau de tuyau:	Pour l'utilisation dans les machines à laver	Sortir:	4-20mA ou pt100
Forfait Transport:	carton	Spécification:	PCS
Marque déposée:	- Je ne sais pas.	Origine:	Chine
Code HS:	9032100000
Mettre en évidence:	PT100 temperature sensor transmitter , 4-20mA temperature sensor indicator , BT93420 temperature sensor with warranty

Description de produit

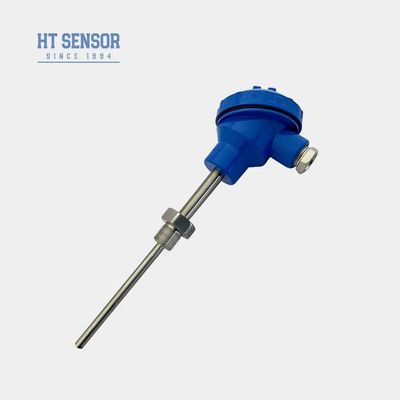

Baoji BT93420 Temperature Indicator sensor Transmitter
BT93420 Temperature Indicator Transmitter

Introduction:
BT93420 temperature indicator transmitter adopts a dedicated temperature module, which can perform linear correction on various types of thermocouples and resistance temperature detectors (RTDs) and output standard analog signals. It features high accuracy, good stability, strong anti-interference capability, water resistance, explosion-proof design, high temperature resistance, and shock resistance. It can be integrated with control systems to enable automated temperature control and monitoring

Product Features:

Full stainless steel structure, good corrosion resistance
Analog output and digital output are both available for selection
Terminal box, 2088 LCD, or LED display are available for selection

Applications:

Monitor the temperature of generators, transformers, cables, and other critical equipment.
Industrial Automation.
Temperature measurement of various gases or liquids in pipelines in industries such as petroleum, chemical, power, and hydrology.

Performance Parameters
Measurement Range	-55~1200ºC
Accuracy @ 25ºC	±0.5% (Typ.) ±1% (Max.)
Repeatability	±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis	±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability	±0.2%F.S/year (Max.)
Operating Temperature	-30~80ºC
Storage Temperature	-40~100ºC
Housing Material	1Cr18Ni9Ti
Diaphragm Material	316L Stainless Steel
Insulation Resistance	>=100MΩ@100VDC
Maximum temperature	120% of the rated temperature range
Protection Rating	IP65
Weight	~0.5Kg

Outline Construction
Terminal Box

Order Guide
BT93420	Temperature Indicator Transmitter
	Code	Outline Construction
	I	Blue Terminal Box
	II	2088 housing
	III	2088+LED
	IIIA	3051+LED
		Measurement Range	-55~1200ºC
			Code	Power Supply
			D1	24VDC
			D2	Other
				Code	Output Signal
				S1	4~20mADC	S4	0~10mADC
				S2	1~5VDC	S5	0~20mADC
				S3	0~5VDC	S6	0~10VDC
					Code	Pressure Connection
					J1	M27X2 Male
					J2	Other
						Code	Insertion depth
						L	Actual insertion depth

company

Q&A

1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
