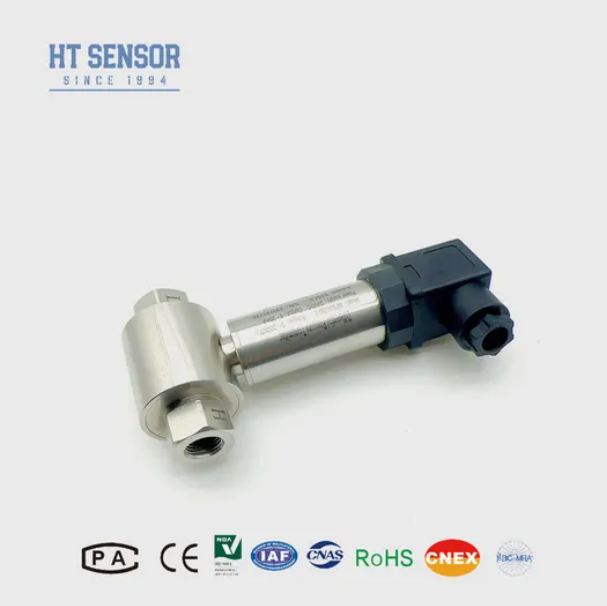

High Accuracy ±0.1% Differential Pressure Transmitter with Wide Temperature Range -40-85℃ and 300% Overload Pressure
Product Details
| Types de mesure: | Pression différentielle et pression statique | Précision: | ± 0,1% de la portée |
|---|---|---|---|
| Température ambiante: | - 40 à 85 °C | Poids: | 0,5 kg |
| Pression de surcharge: | 300% FS | Faire fonctionner la température: | -20 ~ 150 ℃ |
| Type de pression: | Pression différentielle | Connecteur électrique: | Bornier, câble |
| Température de travail: | -10~70℃ | Humidité relative: | 5~98%RH |
| Port pression: | G1/4, G1/2 1/4NPT, 1/2NPT et d'autres | Tension d'alimentation: | 24 (v) |
| Ratio de décroissance: | 100:1 | Modèle no: | autres produits de l'industrie de la construction |
| Matériel de logement: | Aluminium | ||
| Mettre en évidence |
High Accuracy Differential Pressure Transmitter,Wide Temperature Range Pressure Transmitter,300% Overload Pressure Transmitter |
||
Product Description
- Stainless steel construction for durability and easy installation
- Rigorous temperature compensation and aging screening ensure stable performance
- Flexible electrical interface options: plug-in or direct wiring
- Differential pressure measurement for gases/liquids in pipelines (petroleum, chemical, power, hydrology)
- Industrial process monitoring in petroleum, chemical, metallurgy, power generation
- Pipeline and furnace chamber pressure measurement
| Measurement Range | 0-10KPa...~2MPa |
|---|---|
| Pressure Type | Differential Pressure |
| Accuracy @ 25°C | ±0.25% (Typical) ±0.5% (Maximum) |
| Operating Temperature | -30°C~80°C |
| Housing Material | 304, 316L stainless steel |
| Protection Rating | IP65 |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V, 0.5~4.5V | 5VDC |
- Verify medium compatibility with product materials before selection
- Recommended installation with three-valve manifold for pressure regulation
- Position pressure interfaces horizontally for optimal performance
- Specify special requirements (vibration, EMI/RFI protection) when ordering
