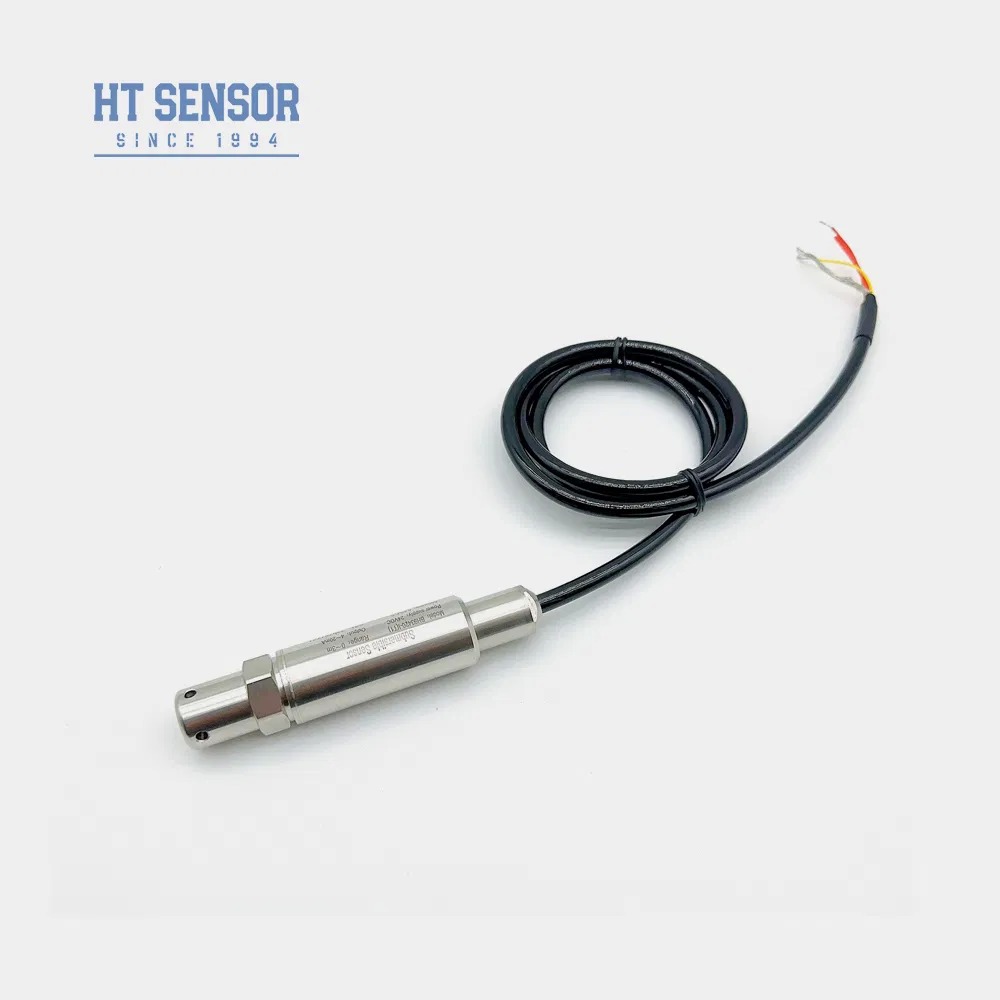

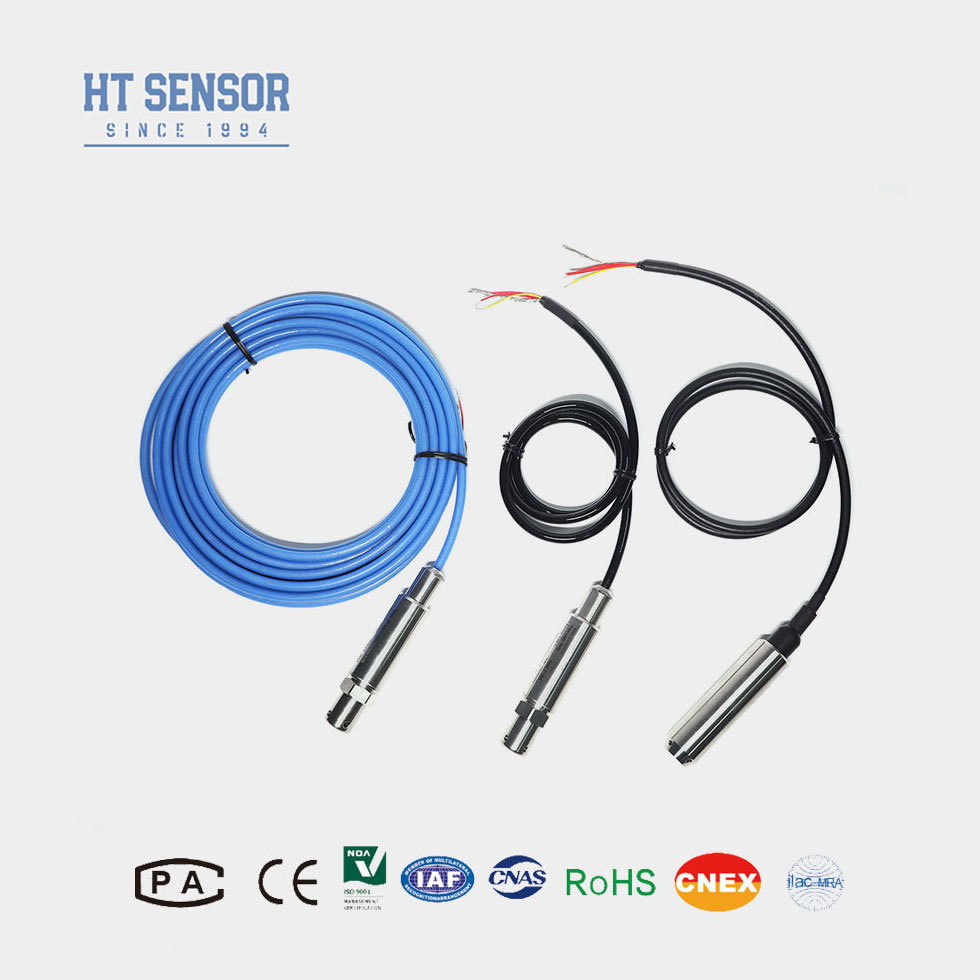

BH93420-IT Liquid Level Transmitter 0.25% Accuracy IP68 Stainless Steel
Product Details
| Modèle n °: | BH93420-IT: Les produits de base sont les suivants: | Plage de pression: | 0 ~ 10m… 400m |
|---|---|---|---|
| Grade de précision: | 00,25%,00,5% | Note IP: | IP68 |
| Poids net: | 0,3 kg | Diaphragme: | 316L en acier inoxydable |
| Matériau câble: | Pour les matières premières | Température de fonctionnement: | -20 à 80 °C |
| Température de stockage: | -30 ~ 100ºC | Matériel de logement: | 1CR18NI9TI, 316L en acier inoxydable |
| Résistance à l'isolation: | > = 100mΩ @ 100vdc | Classification à l'épreuve des explosions: | ExiaIICT6 |
| Cote de protection: | IP67, IP68 | Signal de sortie: | 4 ~ 20mA, 0 ~ 10/20mA, 0/1 ~ 5V, 0/1 ~ 10V, 0,5 ~ 4,5 V |
| Tension d'alimentation: | 12 ~ 30VDC, 5VDC | ||
| Mettre en évidence |
stainless steel liquid level transmitter,IP68 water level transmitter,high accuracy liquid level sensor |
||
Product Description
- Fully welded design ensures safety and reliability

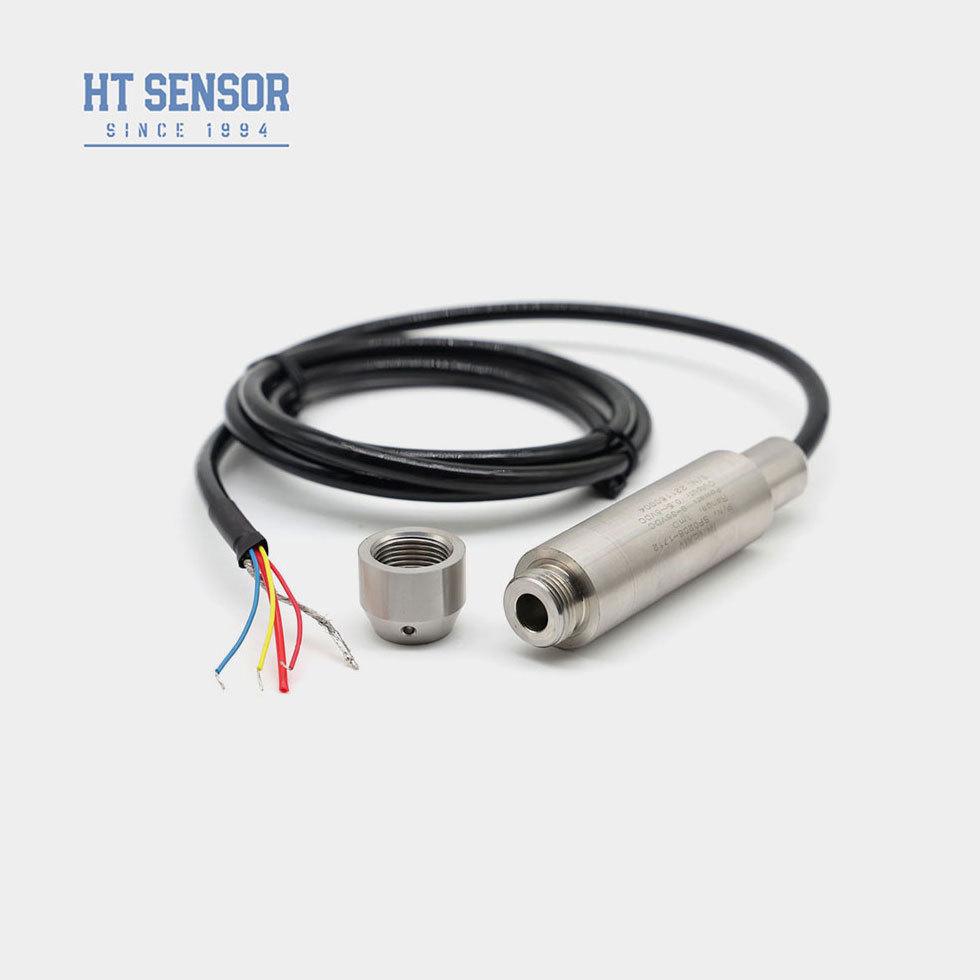

- Dual options for probe insertion and threaded installation to meet various on-site installation needs
- Rigorously tested for high and low temperatures, suitable for wide temperature range applications
- Explosion-proof marking: ExiaIICT6
- PTFT and PU cable options
- Various output signal options available
- Compatible with 316LSS and non-corrosive liquids
- Monitoring water levels in sewage, industrial and municipal water systems, tanks, wells, rivers, seawater, and lakes
- Measuring fuel levels in diesel and fuel tanks
| Parameter | Specification |
|---|---|
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m ); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | 1Cr18Ni9Ti, 316L Stainless Steel |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V | 5VDC | |
| 0/1~10V | ||
| 0.5~4.5V |
- Ensure the measured medium is compatible with product components
- Specify the density of the measured medium
- For strong electromagnetic or radio frequency interference environments, provide details
- Install lightning protection devices and ensure proper grounding for reliable operation
| Code | Option |
|---|---|
| BH93420 | Pressure Transmitter |
| IT | Measurement Range: 0~10m...400m |
| D1 | 24VDC Power Supply |
| D2 | 5VDC Power Supply |
| D3 | Other Power Supply |
| S1 | 4~20mADC Output |
| S2 | 1~5VDC Output |
| S3 | 0~5VDC Output |
| S4 | 0~10mADC Output |
| S5 | 0~20mADC Output |
| S6 | 0~10VDC Output |
| S7 | 0.5~4.5VDC Output |
| S8 | RS485 Output |
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
| 01 | 304 Stainless Steel |
| 02 | 316L Stainless Steel |
| C1 | PU Cable |
| C2 | PTFE Cable |
