BH93420-III Advanced Water Level Transmitter for Industrial Applications
Product Details
| Modèle n °: | BH93420-III: les produits de base | Plage de pression: | 0-1m-400 mH2O |
|---|---|---|---|
| Type d'affichage: | DIRIGÉ | Grade de précision: | 0.1%,00,25% |
| Note IP: | IP68 | Poids net: | 1,6 kg |
| Diaphragme: | 316L en acier inoxydable | Plage de mesure: | 0 ~ 10m… 400mh2o |
| Type de pression: | Pression de mesure, pression absolue, pression scellée | Surcharge: | ≤ 2x plage nominale |
| Précision à 25ºC: | ± 0,1% (typ.) ± 0,2% (max.) | Température de fonctionnement: | -20 à 80 °C |
| Température de stockage: | -30 ~ 100ºC | Matériel de logement: | Couler en aluminium, en acier inoxydable 1CR18NI9TI |
| Signal de sortie: | 4 à 20 mA avec HART | ||
| Mettre en évidence |
HT Sensor water level transmitter IP68,BH93420-III water level sensor 0.1% accuracy,submersible water level transmitter with warranty |
||
Product Description

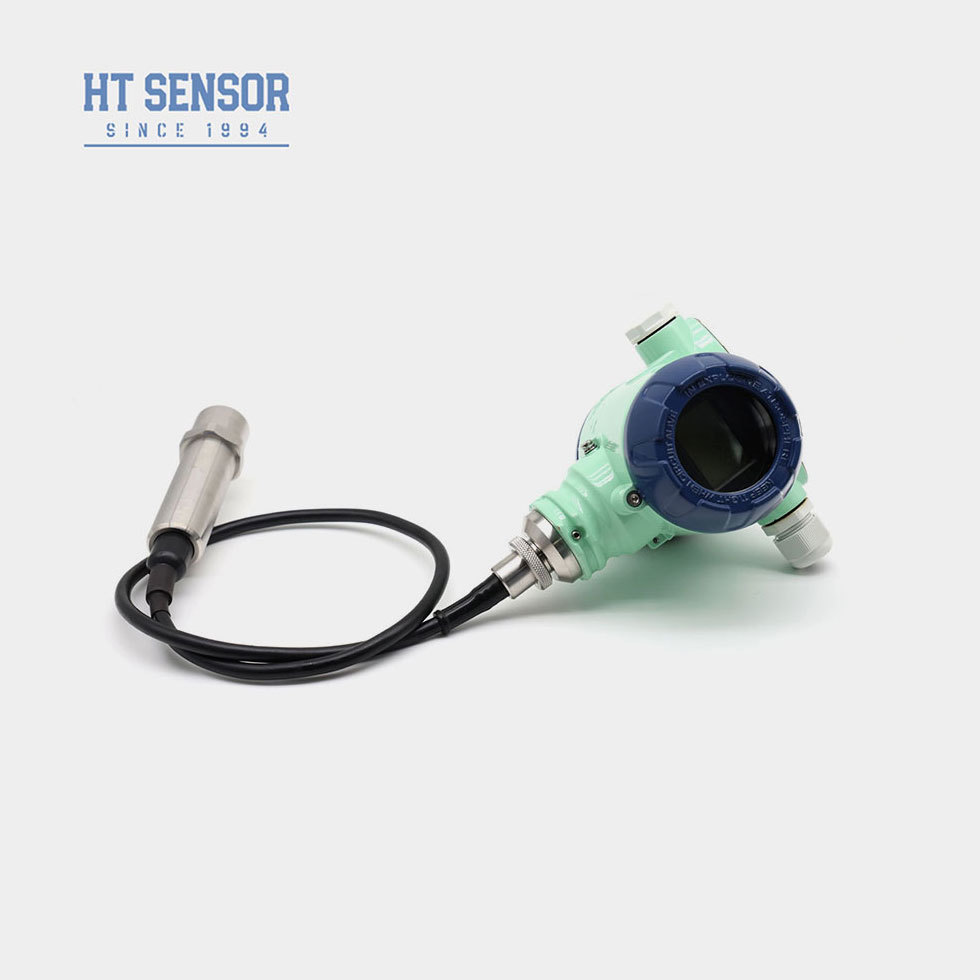

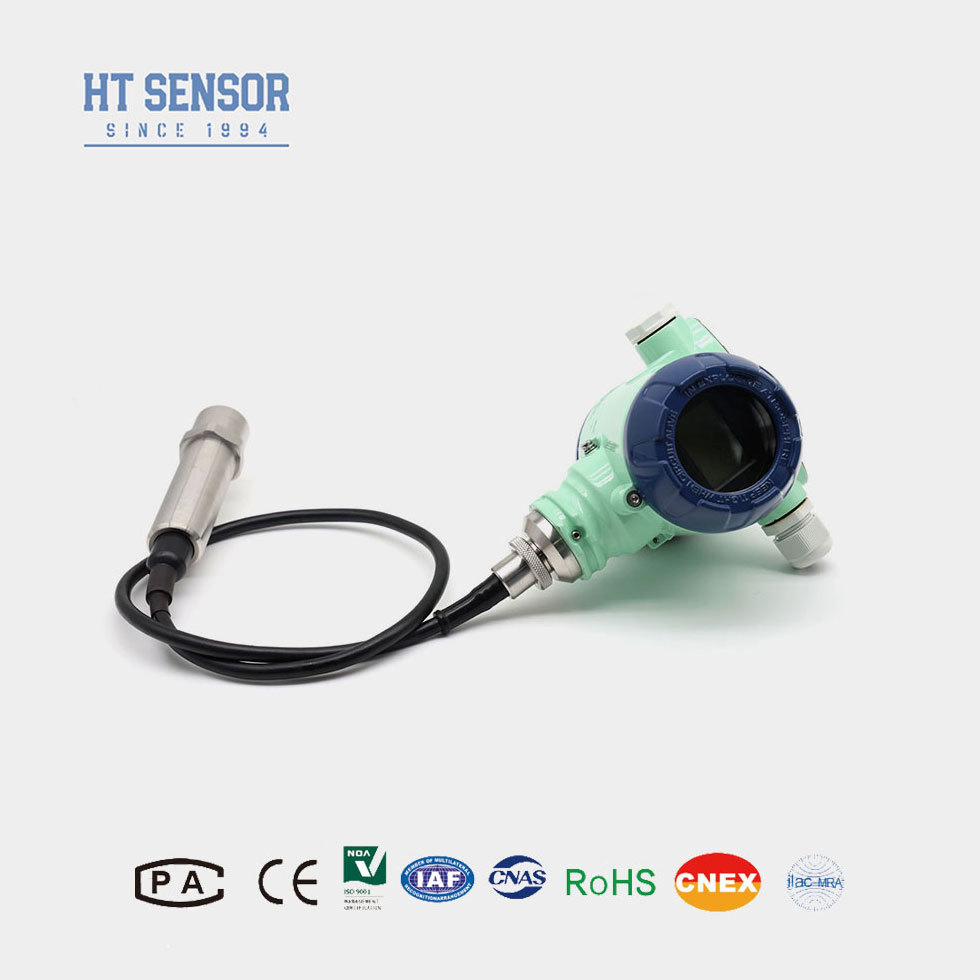

The BH93420-III insertion-type intelligent water level transmitter features a high-precision piezoresistive silicon pressure sensor for measuring static pressure proportional to liquid level. Utilizing HART communication protocol, it enables digital signal transmission and two-way communication.
- HART communication protocol output with display capability
- High accuracy (±0.1%) with excellent stability
- Explosion-proof rating: ExiaIICT6
- High protection level: IP68
- Multiple cable options: PE, PTFT, PU
- Versatile structures to meet various on-site requirements
- Compatible with 316LSS and non-corrosive liquids
- Water level monitoring in sewage, industrial/municipal water, tanks, wells, rivers, seawater, and lakes
- Diesel, fuel, and oil tank level monitoring
| Parameter | Specification |
|---|---|
| Measurement Range | 0~10m...400mH2O |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Accuracy @ 25ºC | ±0.1% (Typ.) ±0.2% (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Operating Temperature | -20~80ºC |
| Housing Material | Cast aluminum, Stainless steel 1Cr18Ni9Ti |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
Please ensure compatibility with measured medium and specify density when ordering.
