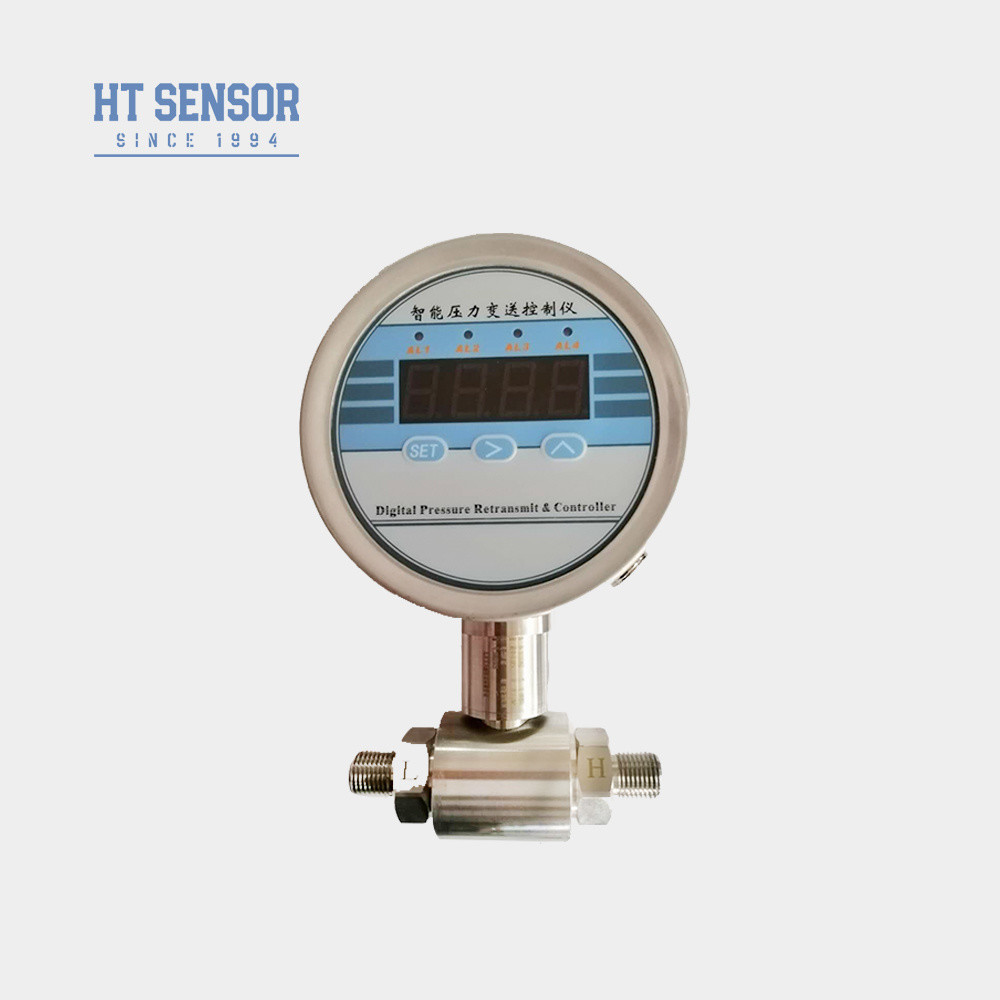

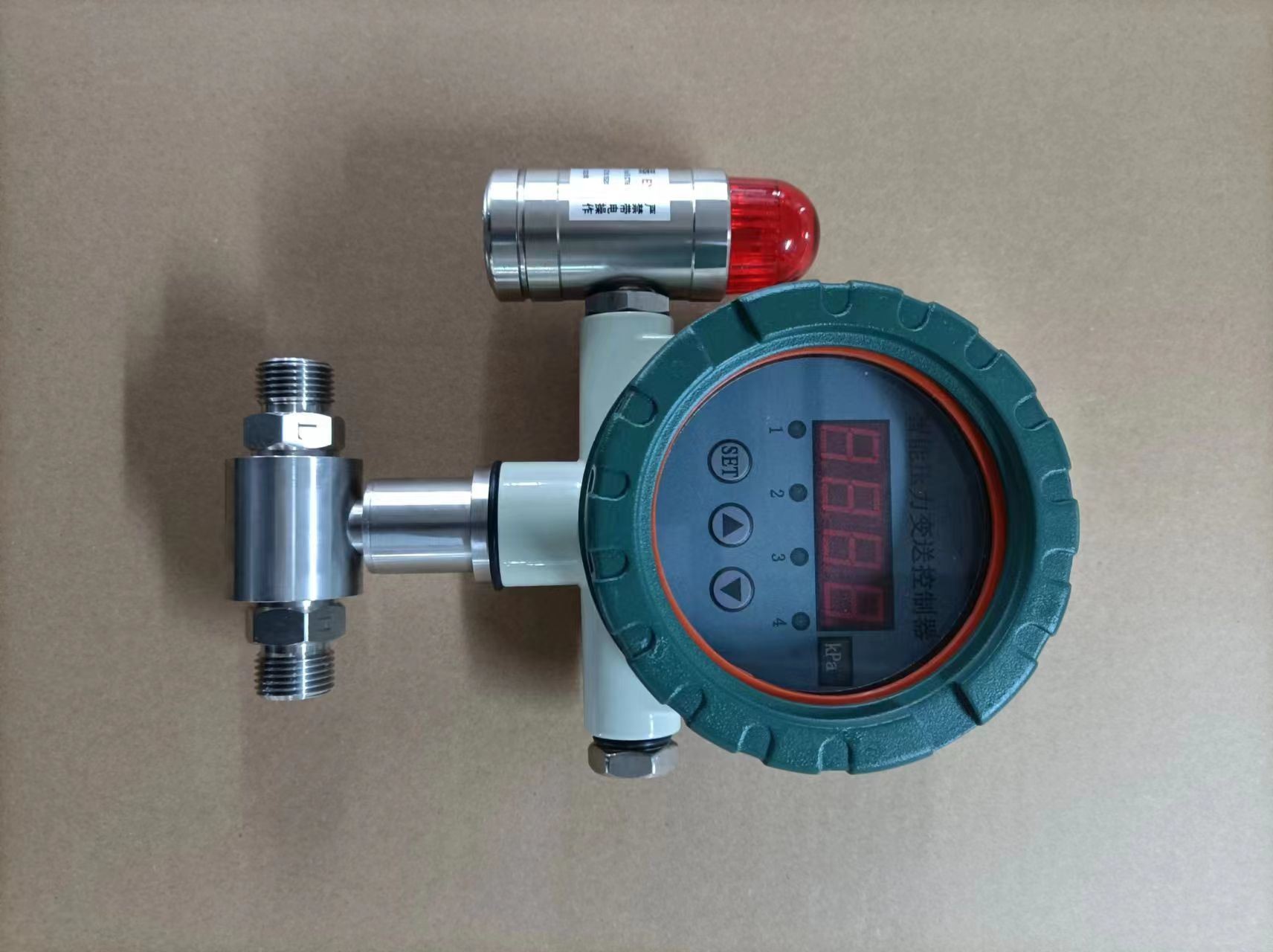

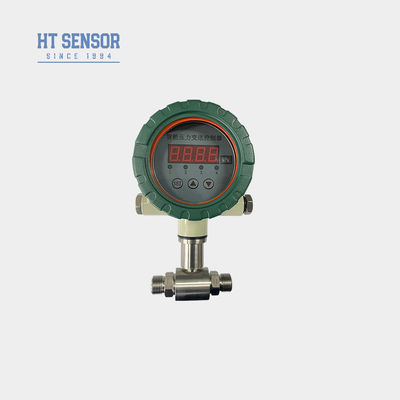

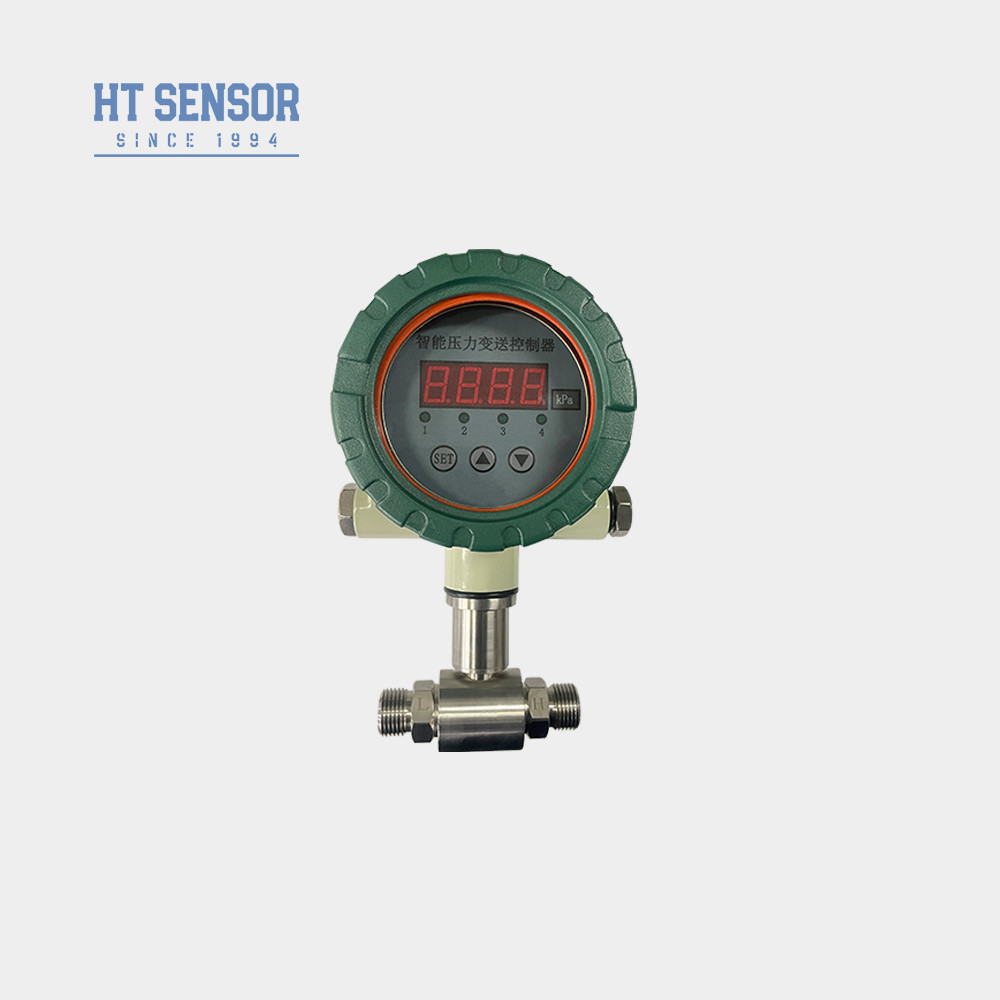

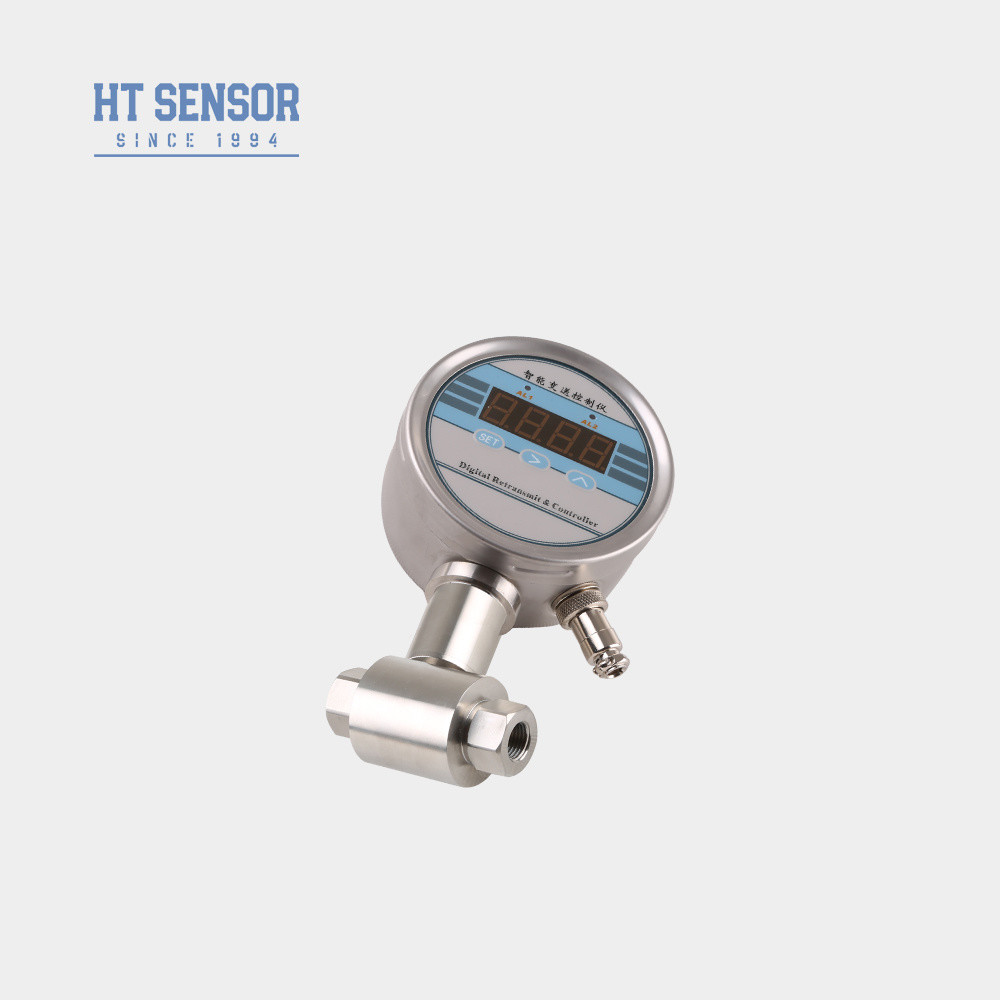

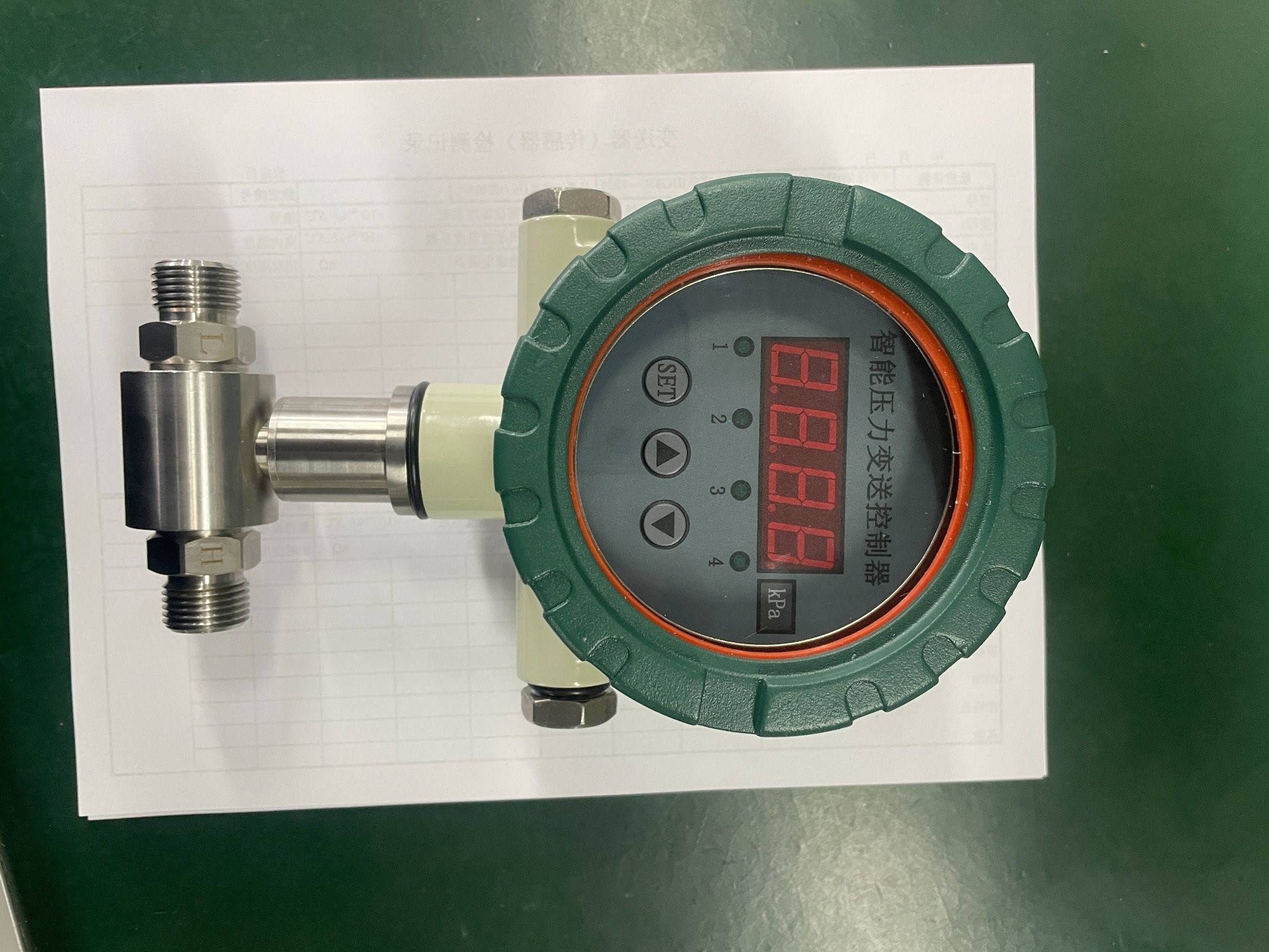

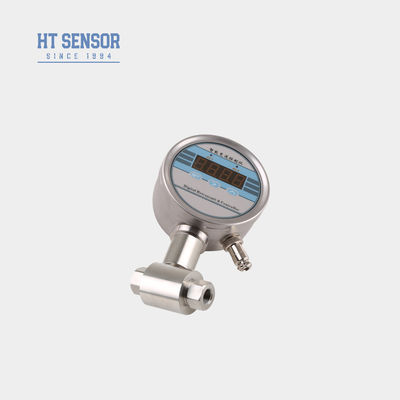

Differential Pressure Alarm Switch Controller Differential Pressure Switch
Product Details
| Modèle no.: | Le numéro de série ZK03D-II | Usage: | Changer |
|---|---|---|---|
| Type anti-déflagrant: | Intrinsèquement sûr | Rs485: | RS485 peut être ajouté |
| Sortir: | Le système d'alarme doit être équipé d'un interrupteur de 4 à 20mA. | Gamme: | -0,1 à 2 MPa |
| Paquet de transport: | CARTON | Marque déposée: | - Je ne sais pas. |
| Origine: | CHINE | Personnalisation: | Disponible | Demande personnalisée |
| Mettre en évidence |
differential pressure switch controller,electronic pressure alarm switch,differential pressure switch with warranty |
||
Product Description
Product Description
- Wide range, Full stainless steel.
- Various pressure point.
- ¢117mm profile.or
- High light LED display.
- Marking:ExiaIICT6.
- Two supply power mode 24VDC or 220VAC,with RS485 communication interface.
- Can provide Max. 4 way relay control contact point.
- value of contact point and status of contact point can be set freely
- Compatible with 316LSS,noncorrosive liquids.
- Apply in Petroleum industry, chemical industry, electric power, metallurgy, hydrology etc process control.
| Measurement Range | -0.1...0~0.01...~100MPa |
| Proof pressure | ≤1.5X rated pressure |
| Pressure type | Gauge, absolute ,sealed gauge |
| Accuracy | ±0.25%(typical) ±0.5%(Max.) |
| Long stability | ±0.3%F.S/year |
| Temperature Error- Zero | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Temperature Error -Span | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Operating Temperature Range | -20ºC~80ºC |
| Storage Temperature Range | -40ºC~120ºC |
| Power supply | 24VDC or 220VAC |
| Output signal | Analog output :4~20mA;Digital output :RS485 |
| Pressure port | M20×1.5 G1/2 or customize |
| Relay control | 1~4 way relay control AC220V/3A |
| Life of contact point | More than 100000 times |
| Display | -1999~9999 |
| Housing material | 1Cr18Ni9Ti stainless steel |
| Diaphragm material | 316L |
| O ring | Fluororubber |
| Cable | Polyethylene |
| Insulation resistance | 100MΩ 100VDC |
| Protection | IP65 |

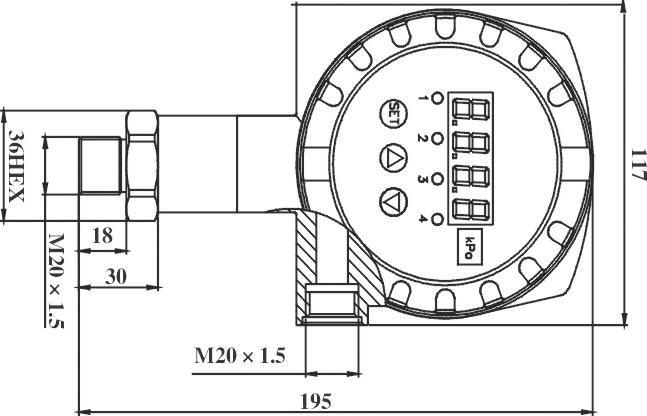

| Outline Construction | |
| Dimension | |
| Ordering tips |
1. When selecting the product, please ensure that the measured medium is compatible with the contacting parts of the product.
2. When placing an order, please specify the power supply, accuracy grade, number of control points.
3. The measurement range of the flat diaphragm pressure controller is 0~35KPa...20MPa.
4. For users selecting differential pressure measurement, pay attention to the relationship between the differential pressure range and the allowable overpressure and maximum pressure of the high and low pressure chambers, and ensure it aligns with the requirements of the field application. To ensure the safe and reliable operation of the product, it is recommended to install a three-valve manifold between the measuring point and the transmitter.
5. To ensure the reliable operation of the product, it is recommended to install lightning protection devices at the site and ensure that the product and power supply are reliably grounded. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic interference, and radio frequency interference, please inform our company and specify them in the order.
